Gold Series Multi-Purpose Ladders
Multi-Purpose Gold Ladder 16-Rung

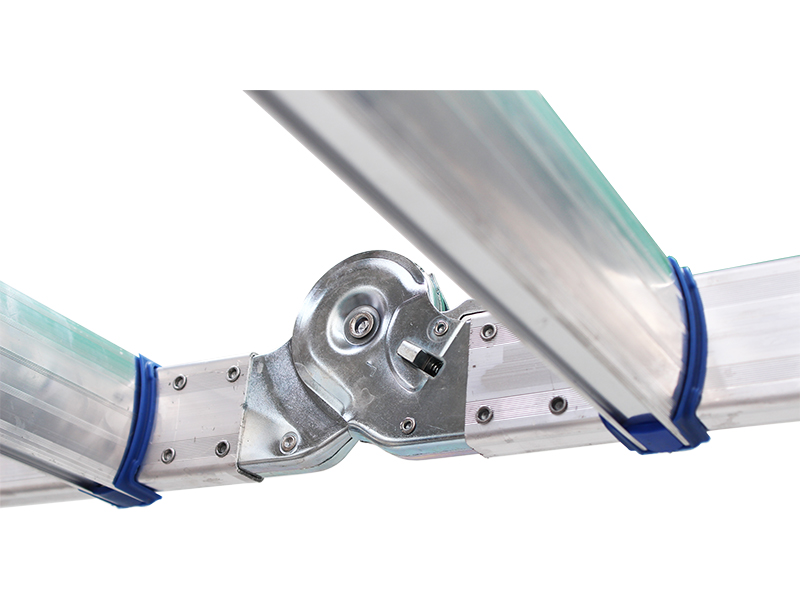

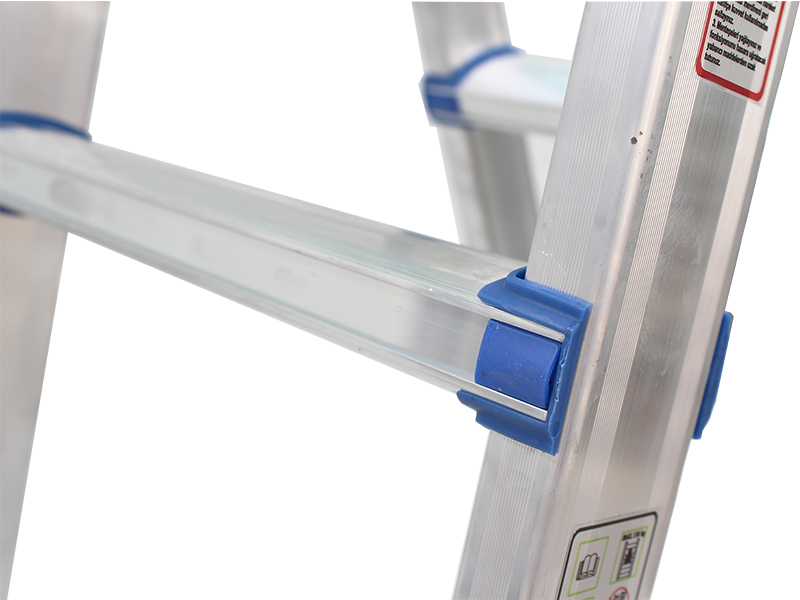

Developed specifically for your professional projects requiring greater reach, our 16-rung Multi-Purpose Gold Ladder combines high performance with superior safety. Its special alloy, corrosion-resistant aluminum frame guarantees maximum stability even across the extended reach provided by its 16 rungs. With its 3-stage telescopic system, it can be quickly positioned in both A-frame and straight extension modes. Featuring non-slip rungs and a reinforced locking mechanism, it elevates your safety to the next level even at the highest elevations.
TECHNICAL TABLE
GOLD SERIES
TECHNICAL SPECIFICATIONS
| CODE | PRODUCT TYPE | ALUMINUM | WIDTH | CLOSED HEIGHT | WEIGHT (KG) | VOLUME (M³) | PROFILE | CLOSED / OPEN / A TYPE / PLATFORM (MM) | PACKED SIZE (MM) | PCS PER M³ |
|---|---|---|---|---|---|---|---|---|---|---|
| GOLD 43 | 4x3 12 STEPS | 1.6 MM | 38 CM | 102 CM | 13.25 | 0.115 | 63x25 | 1020 x 3700 x 1770 x 1020 | 380 x 300 x 1010 | 9 |
| GOLD 44 | 4x4 16 STEPS | 1.6 MM | 38 CM | 125 CM | 15.90 | 0.144 | 63x25 | 1250 x 4700 x 2320 x 1250 | 380 x 300 x 1260 | 7 |
| GOLD 45 | 4x5 20 STEPS | 1.6 MM | 38 CM | 160 CM | 19.70 | 0.180 | 63x25 | 1600 x 5800 x 2900 x 1600 | 380 x 300 x 1580 | 6 |
